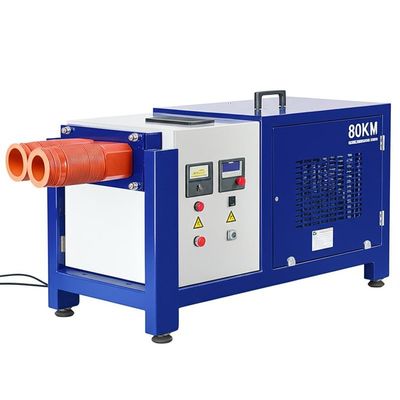

80Kw Heavy-Duty Induction Preheating Machine for Structural Steel Tubes | Hardening & Heating to 300°F+

80Kw Preheating Induction Hardening Machine For Structural Steel Tube to 300°F

Quick Detail:

Type:Other

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-080A-14T

Voltage:380V

Current:122A

Rated Capacity:80KW

Rated Duty Cycle:80KW

Dimensions:880*663*982

Weight:201Kg

Usage:induction temperature stress relievers

Certification:CE ISO9001:2008

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:380V,3-Phase

Temperature recorder:6 Channel temperature recorder

Description:

Our 80Kw induction heating machine is engineered for heavy-duty industrial preheating and hardening applications. It delivers fast, uniform heat for structural steel tubes, pipes, and beams, efficiently reaching and maintaining precise temperatures up to 300°F and beyond. The system eliminates cold spots and minimizes thermal stress, ensuring optimal results for welding preheat, stress relieving, or surface hardening processes. Its robust design is built for continuous operation in demanding environments, offering superior performance over traditional flame heating methods.

Key Features & Benefits:

• High-Power Output: 80Kw capacity provides rapid heat-up for large structural components, reducing cycle times.

• Precision Temperature Control: Achieves and maintains precise target temperatures (up to 300°F+), ensuring consistent process quality.

• Uniform Heating: Eliminates cold spots and reduces the risk of cracking or distortion in welds and materials.

• Dual-Process Capability: Ideal for both preheating before welding and hardening applications, maximizing ROI.

• Energy-Efficient & Safe: IGBT-based technology offers high efficiency and eliminates open flames, improving workplace safety.

Applications:

With the introduction of the Induction Pipe preheat , this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

• Welding fabrication and construction;
• Preheating of welds;
• Post-weld heat treatment;
• Coating removal;
• Shrink Fit and so on
• Pre-heating of structural steel tube to 300°F

Specifications:

Competitive Advantage:

1.Versatile Mobility:optional running gear designed for construction and maintenance
2.On-board temperature control:provide for manual or temperature based programming in a simple-to-learn operator interface
3.Muitiple control thermocouple inputs:available to control on the hottest TC during heating and coolest TC during cooling for
4.uniform heating and quanlity
5.Open output detection:prevents system operation without a covered output receptacle(cable or protective plug)
6.Isolation fault protection:provides automatic system shut down power source output to ground.
7.Low consumable costs:No fuel costs and minimal insulation costs.insulation is resuable and may be used 50 time or more,reducing costs of disposal and replacement.
8.Uniform heating:maintained along and through the heat zone by using induction to heat within the material.the surface of the part is nor marred by localized conducted heat at higher than specified temperatutes.
9.Time-to-temperature:faster than conventional processes due to methed of applying the heat,reducing the heating heating recyle time.
10.Improved working environment: With welding,welders are not exposed to open flame,explosive gases and hot elements associated with fuel gas heating and resistance heating.
11.High energy-efficeent systems:(more than 90 percent efficient)transfers more energy to the part,decreassing heating times and impoving power efficietnt.
12.Easy Set-up:achieved using preheat blankets or flexible heating cables combined with user-friendly insulation blankets.
